Pelco Fiber Rack Mounts

EURACK/USRACK Series

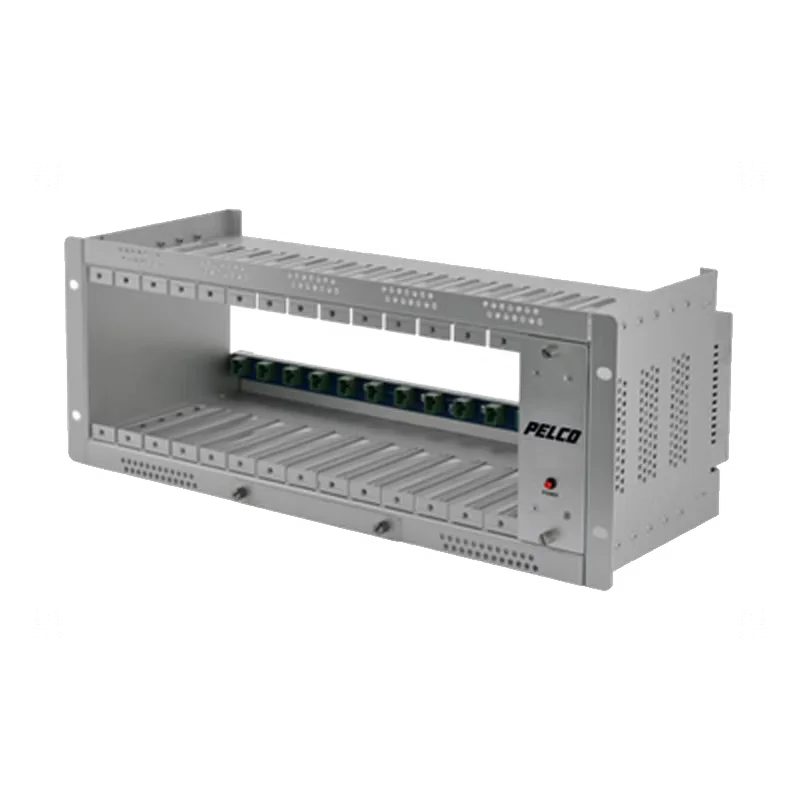

The EURACK/USRACK chassis is designed to hold up to 14 single-width fiber optic modules. The internal power supply is 4 RU high. The chassis is designed to mount into an EIA-standard, 48.26 cm (19-inch) rack. Optional single-width blank modules (RACK1B) can be inserted into empty module slots.

The EURACK/USRACK fiber card cage features automatic electronic current limiting at each module rather than limiting currentat the power supply. With this design, if a fiber module fault occurs, only the faulty module will shut down. All other modules within the rack will continue to operate unimpaired.

The automatic current limiting feature of the EURACK/USRACK is also self-resetting. This allows the unit to handle a temporary or intermittent fault or overload. Modules in the chassis are hot-swappable, allowing the rack to remain powered when removing or replacing modules.

EURACK/USRACK Fiber Rack Mounts

CHASSIS FOR FIBER OPTIC MODULES WITH INTERNAL POWER SUPPLY

Product Features

• 4 Rack Units (RU) High
• Mounts in a EIA-Standard 48.26 cm (19-Inch) Rack
• Holds up to 14 Single-Width Fiber Optic Modules
• Hot-Swappable Internal Power Supply
• Voltage Transient Protection on All Power and Signal
• Input/Output Lines
• Optional Blank Modules
• Compatible with All FTV/FRV Series Modules
