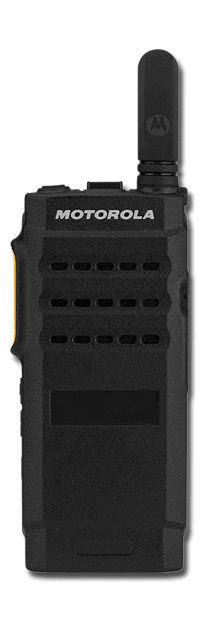

MOTOTRBO™ SL300 portable radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile.
Whether you're working in the field or at a black-tie event, the SL300 is boldly designed to keep you efficiently connected. Measuring under an inch thick, the SL300 is ultra-portable with a stubby antenna, curved edges, and a rugged frame. It features an Active View display with a matrix of LED lights behind the radio housing and “Range Max” technology, an advanced radio design, and a patented antenna for enhanced range. Designed for easy and intuitive use and outfitted with the latest technology, the SL300 is the perfect work partner.
Radios include:
SL300 Active View Display
SL300 Non-Display
Frequency Band:
VHF, UHF
Frequency Range:
VHF - 136 - 174 MHz;
UHF - 403 - 470 MHz
Power Output:
1, 2, 3, Watt
Number of Channels/Groups/Zones:
99 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Analog (hours) - 12.5 (VHF Non-Display), 11.8 (VHF Display); 12.5 (UHF Non-Display), 11.8 (UHF Display)
Digital - 15 (VHF Non-Display), 14 (VHF Digital); 15 (UHF Non-Display), 14 (UHF Display)
Dimensions H x W x D (with standard battery)
4.95 X 2.17 x 0.87 in (125.7 X 55.0 X 22.0 mm)
Weight (with standard battery)
VHF: 5.96 oz (168.9 g), UHF: 5.84 oz (165.6 g)
Display
No Display, Active View
Operating temperature
-22 F to 140 F (-30 C to +60 C)
Mil spec
810 D 810 E
IP Standards
IP54
Key features
Slim and stylish, for the customer service user who needs intuitive technology
Measuring under an inch thick, the SL300 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL300 the perfect work partner. It can be easily carried in pockets and purses without snagging or bulging.
Active View Display – optional (SL300 display model)
Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and nighttime situations.
Connect to intuitive technology with this slim, lightweight radio. An eye-catching Active View display combines ruggedness with simplicity, and patented Range Max technology delivers great coverage with long battery life in a small, convenient outline. The radio supports analog and digital modes and is complemented by a range of innovative accessories.
Popular with these industries:
From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.
 | PMAE4093 UHF Stubby Antenna (403-425 MHz), 4.5 cm |
 | PMAE4094 UHF Stubby Antenna (420-445 MHz), 4.5 cm |
 | PMAE4095 UHF Stubby Antenna (435-470 MHz), 4.5 cm |
 | PMAD4144 VHF Stubby Antenna (136-144 MHz), 5 cm |
 | PMAD4145 VHF Stubby Antenna (144-156 MHz), 5 cm |
 | PMAD4146 VHF Stubby Antenna (156-174 MHz), 5 cm |
 | PMNN4468 BT100x Li-ion 2200 mAh battery |
 | PMLN7074 Replacement Battery Cover |
 | PMLN7190 Carry Holster with Swivel Belt Clip |
 | PMLN7128 Heavy-Duty Swivel Belt Clip |
 | PMLN6074 Nylon Wrist Strap |
 | PMLN7076 Flexible Quick Release Hand Strap |
 | HLN9985 Waterproof Bag with large strap for securely carrying Motorola two-way radios |
 | 25009298001 Micro-USB Single-Unit Rapid Rate 5V/1A, Plug-In Power Supply, 5W, 100V-240V (US plug) |
 | PMLN7101 Six-Pocket Multi-Unit Rapid Rate Charger, 90V-264V (US plug) |
 | PMLN7109 Single-Unit Rapid Rate Charger 5V/1A, 5W, 100V-240V (US Plug) |
| CB000262A01 Micro USB Programming Cable |
 | PMLN7157 2-Wire Surveillance Kit with translucent tube, black |
 | PMLN7158 1-Wire Surveillance Kit with in-line microphone and push-to-talk, black |
 | PMLN7189 Swivel Earpiece with in-line microphone and push-to-talk |
 | PMLN7156 Mag One Earbud with in-line microphone and push-to-talk |
 | PMLN7159 Adjustable D-style earpiece with in-line microphone and push-to-talk, black |
The Motorola SL300 Series is available in the following models.
SL300 Active View Display
SL300 Non-Display
