Motorola Solutions dvr-lx

Motorola Solutions

Digital Vehicular Repeater System (DVRS)

THE SAFETY OF CONVENTIONAL WITH THE FEATURES OF TRUNKING

Whether in a deep valley or deep in a building, poor radio coverage puts the safety of first responders at risk. Police and fire personnel need to be able to communicate with dispatch and each other; however, many radio systems are not designed to provide service everywhere public safety professionals are called to respond.

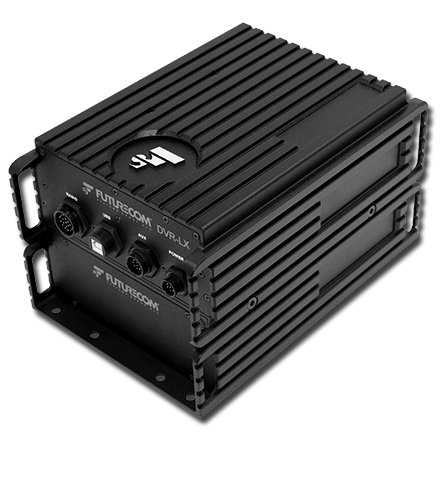

The DVR-LX integrates with the APX™ series mobile radio to function as compact 10-Watt base station repeater installed in the back of a patrol car or fire apparatus. The higher power APX mobile radio extends the range of the portable radio back to dispatch. The APX mobile radio control head is in the front of the vehicle and controls the DVR-LX.

Request A Quote

Features

  • Programmable output power: 1-10 W
  • Full duplex or simplex operation
  • Fully backwards compatible with Digital Vehicular Repeater (DVR)
  • Authentication (optional)
  • Various Label locations
  • Dedicated handles
  • P25 digital / analog operation
  • Available in VHF, UHF, 700 MHz and 800 MHz bands
  • In-band or cross-band configurations
  • Integrates with APX mobile radios
  • Operated through mobile radio control head
  • Transparent P25 encryption pass-through
  • Superior multi-unit operation
  • Extends key P25 trunking features onto conventional simplex or duplex channel
