Motorola Solutions

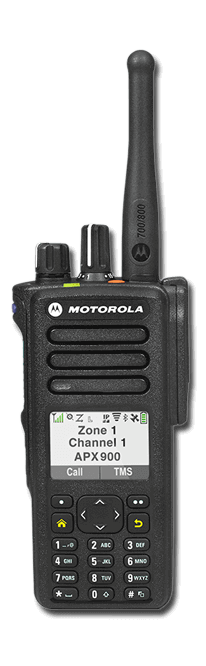

The APX 900 is designed for public works, government services and education organizations who need essential communication at an affordable price. It delivers great core features, with an efficiency-focused design – including Bluetooth® wireless connectivity.
A great radio calls for great support, so we're also introducing Device Management Services for your APX fleet. Whether you need complete ongoing maintenance, or just a little help with provisioning, we have the service package that will suit your needs. You'll get the right level of support for reliable and consistent communications, right across your organization.
With the APX 900 and APX Device Management Services, you get connections you can rely on. Now more than ever.
Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF
Frequency Range:
700/800 (764-776, 793-806, 806-824, 851-870 MHz)
900 (896-902, 935-941 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-480 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-5 W
Number of Channels/Groups/Zones:
512 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Channel spacing:
12.5/20/25 kHz 1
Dimensions H x W x D (with standard battery)
5.1" x 2.2" x 1.4"
Weight (with standard battery)
11 oz
Keypad / Keys
Model 2: Backlit keypad, 2 soft keys, 4-direction navigation key, Home and Back buttons
Model 3: Backlit keypad, 2 soft keys, 4-direction navigation key, 4x3 keypad, Home and Back buttons
Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 2 menus, White backlight
Operating temperature
-30 °C to +60 °C
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP68
Improved Ergonomics: Always in Control
The APX 900 is designed to be efficient. With tactile, dedicated knobs for volume and channel, you can communicate freely without taking your eyes off the task. Even in dark areas and confined spaces, you can be confident you're using the radio without error.
Great Value: Do More, Don't Pay More
Just because you have a limited budget doesn't mean you have to limit your communication. The APX 900 gives you secure voice and data in a rugged and reliable device. It has full P25 interoperability, plus the features you need to connect your workers - all at a great price.
Better Wireless Connectivity: Cut the Cord
The APX 900 has Bluetooth 4.0 (LE) capability, giving you the freedom to use the radio without being wired to it. Bluetooth low energy technology delivers the convenience of “always-on,” so you can stay paired to the radio without draining the battery.
Smart Interoperability: Communicate Across Boundaries
The APX 900 is certified compliant with the P25 standard, so you know you're making a smart investment. Communicate seamlessly with other P25-compliant organizations and first responders. And if there's ever an emergency, you can coordinate mutual aid right from your radio.
Powerfully Simple: Be Effective Now
With the APX 900, even the most sophisticated features are easy to use, so you can be confident your teams aren't wasting time memorizing special settings. Give your teams the APX 900 and watch them be effective immediately.
 | NAF5085 700/800 MHz, GPS Whip Antenna |
 | PMAE4065 UHF, GPS Whip Antenna |
 | PMAE4022 6.3-inch UHF (403-470 MHz), flexible whip antenna. |
 | NAR6593 VHF, GPS Whip Antenna |
| Stubby Antenna 4.3-inch VHF stubby antennas. |
 | NNTN8128 IMPRES Li-Ion 2000 mAh Slim, Submersible, Battery-IP67 |
 | PMNN4424 IMPRES Li-Ion 2350 mAh Submersible, Battery-IP67 |
 | PMNN4448 IMPRES Li-Ion 2800 mAh Submersible, Battery-IP67 |
 | PMNN4489 IMPRES Li-Ion 2900 mAh Battery, IP68 |
 | PMNN4491 IMPRES Li-Ion 2100 mAh Battery, IP68 |
 | PMNN4493 IMPRES Li-Ion 3000 mAh Battery, IP68 |
 | PMLN6085 Leather Carry Case with 2.5” Swivel Belt Loop |
 | PMLN4651 2” Hard Plastic Belt Clip |
 | PMLN7008 2.5” Hard Plastic Belt Clip |
| PMLN5610 2.5-inch Leather Swivel Belt Loop, CSA |
 | PMLN5611 2.5-inch Swivel Belt Loop |
| RLN5383 Hard leather case with fixed 3-inch belt loop and D-rings. |
| RLN5385 Hard leather case with 3-inch swivel belt loop and D-rings. |
| PMLN5838 Leather case with 3-inch fixed belt loop |
| PMLN5842 Leather case with 2.5-inch swivel belt loop |
 | PMLN5843 Leather case with 3-inch swivel belt loop |
| PMLN5844 Nylon Case with 3-inch fixed belt loop. For radios with display |
| PMLN5845 Nylon Case with 3-inch fixed belt loop. For radios with no display |
 | PMPN4174 IMPRES Single-Unit Charger, 115V |
 | PMPN4284 IMPRES Multi-Unit Charger, 115V |
 | BR000272A01 Wall mount bracket for PMPN4284 Charger |
 | NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger |
 | NNTN8525 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
 | PMLN6125 1-Wire Receive-only earpiece, black |
 | PMLN6126 1-Wire Receive-only earpiece, beige |
 | PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
 | PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
 | PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN5101 IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair) |
 | PMLN5102 Ultra Lite Headset |
 | RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit |
 | PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
 | PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
| HMN4101 IMPRES RSM, No display |
| HMN4103 IMPRES RSM, Display, no channel knob |
| HMN4104 IMPRES RSM, Display and channel knob |
