We know the job puts your officers in harm's way every day. The last thing they need to worry about is safe communication. Certified to the stringent Div1 HazLoc standards, the APX 8000H is designed for use in areas where there are routinely dangerous concentrations of flammable gases, vapors, liquids or combustible dust. The APX 8000H has an adaptive audio engine that provides the provides the loudest, clearest audio at any volume, in any environment.
Of course, communication matters too. Your officers can't afford not to hear—or be heard at any volume, in any environment. We also know that they need to connect with outside agencies, often without a moment to spare. The APX 8000H transmits and receives on all commonly used frequencies so they can communicate with different agencies using the same radio. With its intuitive design and comfortable feel, the APX 8000H is made for the way your officers work.
Frequency Band:
VHF, UHF-1, UHF-2, 700 MHz, 800 MHz
Frequency Range:
700/800 (762-776, 794-806, 806-825, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-6 W
Number of Channels/Groups/Zones:
3,000 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Channel spacing:
12.5 kHz, 20 kHz, 25 kHz
Dimensions H x W x D (with standard battery)
6.3" x 3.0" x 1.9" (160 mm x 76 mm x 49 mm)
Weight (without standard battery)
20.0 oz 568g
Keypad / Keys
Model 2.5:3 soft keys, 4-way navigation pad, Home and Data buttons
Model 3.5: 4x3 keypad, 3 soft keys, 4-way navigation pad, Home and Data buttons
Display
Model 2.5/3.5:Full bitmap color LCD front display, 2 lines of status icons, 4 lines of text x 14 characters, 1 line of menu x 3 keys, White backlight
Full bitmap mono LCD top display, 1 line of text x 8 characters, 1 line of status icons, Multi-color backlight
Operating temperature
-20 to +60 ºC (-20 to +140 ºF)
Mil spec
MIL-STD-810 C, D, E, F and G
IP Standards
IP68
Respond with Confidence

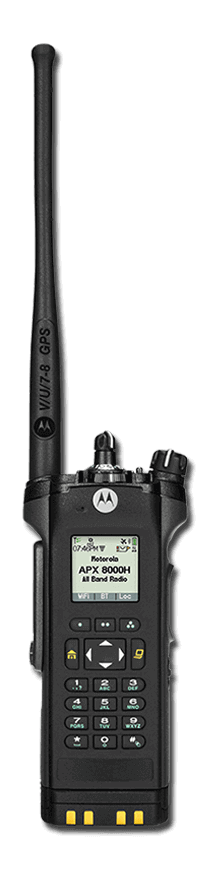

Certified to Div1 HazLoc standards, the APX 8000H is safe to use in areas with concentrations of flammable gasses, vapors, liquids, or combustible dust.
All Bands, No Boundaries
The APX 8000H transmits and receives on all commonly used frequencies, so your officers can communicate with different agencies using the same radio.
Sound Matters
Your officers can't afford to not hear—or be heard. The APX 8000H adaptive audio engine gives you the loudest, clearest audio in any environment.
Conquer Chaos
With a water-tight seal, drop-resistant dual battery latch, pressure-tested tempered glass display and a shock-absorbing aluminum alloy endoskeleton, the APX 8000H is built to survive everything from drops to drownings.
Made for the Mission
With its intuitive design and comfortable feel, the APX 8000H is made specifically for the way your officers work and communicate.
All the Support you Need
Motorola Solutions offers three levels of service plans—Premier, Advanced, and Essential—so you can manage in the way that suits you best.
Whichever way you look at it, the new APX 8000H is Motorola Solutions most advanced two-way radio ever. It transmits and receives on all commonly used frequencies – so your officers can communicate with different agencies using the same radio.
NAF5085 700/800 MHz, GPS Whip Antenna |
|
PMAE4065 UHF, GPS Whip Antenna |
|
NAR6595 1/4 Wave, 700/800 MHz, GPS Stubby Antenna |
|
NAR6594 VHF, 700/800 MHz Dual Band, GPS Whip Antenna |
|
PMAT4001 VHF, UHF Dual Band, GPS Whip Antenna |
|
PMAS4001 UHF 700/800 MHz Dual Band, GPS Whip Antenna |
|
NAG4000 GPS Antenna (Directly connected to radio when a public safety microphone is used) |
|
PMAF4002 700/800 Public Safety Microphone Only Stubby Antenna |
PMNN4403 IMPRES Li-Ion 2200 mAh Slim, Submersible Battery-IP67 |
|
NNTN7038 IMPRES Li-Ion 3100 mAh Submersible Battery-IP67 |
|
NNTN8092 IMPRES Li-Ion 2350 mAh, Intrinsically Safe - FM, Submersible, Rugged Battery-IP68 |
|
NNTN7034 IMPRES Li-Ion 4400 mAh -30ºC Rated Submersible, Rugged Battery-IP68 |
|
NNTN7033 IMPRES Li-Ion 4300 mAh Intrinsically Safe - FM, Submersible, Rugged Battery-IP68 |
|
NNTN7037 IMPRES NiMH 2300 mAh, Submersible Battery-IP67 |
|
NNTN7573 IMPRES NiMH 2300 mAh, Submersible Rugged Battery-IP68 |
|
NNTN7036 IMPRES NiMH 2200 mAh Intrinsically Safe - FM, Submersible Battery-IP67 |
|
NNTN7035 IMPRES NiMH 2200 mAh Intrinsically Safe - FM, Submersible Rugged Battery-IP68 |
|
PMNN4439 APX Clamshell Battery Pack (requires 12 AA Alkaline batteries, not included), Submersible Battery-IP57 |
NTN2570 Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod |
|
NTN2571 Mission-Critical Wireless push-to-talk pod |
|
NNTN8442 Mission-Critical Wireless Remote Control Keyfob with programmable buttons |
|
PMLN7052 1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods |
|
NNTN8294 1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black |
|
NNTN8295 1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black |
|
NNTN8296 Covert Audio Kit for Mission-Critical Wireless PTT Pod |
|
NNTN8385 Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod |
|
RLN4920 neck loop for Discreet Earpiece Kit |
|
NNTN8434 Accessory Kit, Completely Discreet Wireless Surveillance Kit |
|
NTN2572 Replacement Wireless Earpiece 12-inch cable |
|
RLN6489 Mission-Critical Wireless Covert Pack-N-Go Kit, Basic. Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit |
|
RLN6501 Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced. Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter |
PMLN5331 Carry Holder for 1.5, 2.5 and 3.5 Model Radios |
|
PMLN5323 Leather Carry Case with 3” Fixed Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
|
PMLN5326 Leather Carry Case with 3” Fixed Belt Loop for NNTN7033 and NNTN7034 Batteries |
|
PMLN5329 Leather Carry Case with 3” Fixed Belt Loop for NNTN7035, NNTN7036, NNTN7037 and NNTN7573 Batteries |
|
PMLN5324 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
|
PMLN5327 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7033 and NNTN7034 Batteries |
|
PMLN5330 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7035, NNTN7036, NNTN7037 and NNTN7573 Batteries |
|
PMLN5560 Dual Display Radio Flip Leather Carry Case with 2.75” Swivel Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
|
PMLN5322 Nylon Carry Case with 3” Fixed Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
|
PMLN5325 Nylon Carry Case with 3” Fixed Belt Loop for NNTN7033 and NNTN7034 Batteries |
|
PMLN5328 Nylon Carry Case with 3” Fixed Belt Loop for NNTN7035, NNTN7036, NNTN7037 and NNTN7573 Batteries |
|
PMLN6712 Carry Case for APX Radio with Clamshell Battery |
|
NTN8266 2.5” Hard Plastic Belt Clip (not compatible with UHF Portable Radios) |
|
HLN6875 3” Hard Plastic Belt Clip |
|
HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch |
|
RLN4570 Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch |
WPLN7080 IMPRES Single-Unit Rapid Rate Charger, 120V (US Plug) |
|
NNTN7593 IMPRES Dual-Unit Rapid Rate Charger with 2 Displays, 120V (US plug) |
|
NNTN7586 IMPRES Dual-Unit Rapid Rate Charger, 120V (US plug) |
|
NNTN7073 IMPRES Multi-Unit Rapid Rate Charger with 6 Displays, 120V (US plug) |
|
NNTN7065 IMPRES Multi-Unit Rapid Rate Charger with 1 Display, 120V (US plug) |
NNTN7624 IMPRES Single-Unit Rapid Rate Vehicular Charger |
|
RLN6434 Travel Charger with voltage-regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
RLN5382 Display Module for IMPRES Multi-Unit Charger |
|
NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Charger |
|
NNTN7686 Insert for WPLN4108/4130 XTS Multi-Unit Charger (6 per pack) |
|
NNTN7687 Insert for NTN1873/WPLN4111 XTS Single-Unit Charger |
PMLN5653 IMPRES Ear Microphone with Bone Conduction and programmable button, black |
|
0180300E25 Earguard with Adjustable Loop |
PMLN6125 1-Wire Receive-only earpiece, black |
|
PMLN6126 1-Wire Receive-only earpiece, beige |
|
PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
|
PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
|
PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
|
PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
|
PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
|
PMLN6124 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige |
|
ZMN6038 2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
ZMN6039 3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
ZMN6032 2-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
ZMN6031 3-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
BDN6664 1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
|
BDN6726 1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6665 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6727 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
RLN5314 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded. Requires BDN6783 |
|
RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
|
RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
|
BDN6666 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6728 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6667 2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6669 2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
|
BDN6731 2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6668 3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6730 3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6670 3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6732 3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
PMLN5101 IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair) |
|
PMLN5096 Earset D-Shell |
|
PMLN5102 Ultra Lite Headset |
|
RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit |
|
PMLN5275 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
|
RLN6490 XBT Operations-Critical Wireless Behind-the-Neck Headset |
|
RLN6491 XBT Operations-Critical Wireless Headband Style Headset |
RMN5137 MT Series Over-The-Head Headset, direct radio connect PELTOR PART NUMBER: MT7H79A-C5063-34 |
|
RMN5138 MT Series Neckband Headset, direct radio connect PELTOR PART NUMBER: MT7H79B-C5063-34 |
|
RMN5139 MT Series Hard Hat Attached Headset, direct radio connect PELTOR PART NUMBER: MT7H79P3E-C5063-34 |
PMLN6088 MT Series Over-the-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79A-34 |
|
RLN6477 MT Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79B-34 |
|
RMN4051 MT Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79P3E-34 |
|
RMN4052 TacticalPro Series Over-The-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7A-34 |
|
RMN5135 TacticalPro Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7B-07-34 |
|
RMN4053 TacticalPro Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7P3E-34 |
|
PMLN6095 PTT Nexus Adapter PELTOR PART NUMBER:FL5063-34 |
RMN4055 HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79A-34 |
|
RMN5132 HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79B-34 |
|
RMN5133 HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79P3E-34 |
PMLN6765 Tactical PTT/VOX Interface Module |
|
PMLN6827 Tactical PTT Only Interface Module |
|
PMLN6766 Tactical Boomless Temple Transducer (requires Interface Module PMLN6765 or PMLN6827) |
|
PMLN6828 Tactical Throat Microphone (requires Interface Module PMLN6765 or PMLN6827) |
|
PMLN6829 Tactical Ear Microphone (requires Interface Module PMLN6765 or PMLN6827) |
|
PMLN6833 Tactical Temple Transducer / Boom Mic (requires Interface Module PMLN6765 or PMLN6827) |
|
PMLN6767 Tactical Remote Body PTT (for use with Interface Module PMLN6765 or PMLN6827) |
|
PMLN6830 Tactical Remote Ring PTT (for use with Interface Module PMLN6765 or PMLN6827) |
NNTN8575A Xtreme Temperature Cable High Impact Green Housing |
|
NNTN8575ABLK Xtreme Temperature Cable Black Housing |
|
NNTN8575AYLW Xtreme Temperature Cable Yellow Housing |
NNTN8203A Standard Cable High Impact Green Housing |
|
NNTN8203ABLK Standard Cable Black Housing |
|
NNTN8203AYLW Standard Cable Yellow Housing |
NMN6271 IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button. Rugged, Submersible (IP68) |
|
NMN6274 IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55) |
|
RLN6554 Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120) |
|
HMN4104 IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
|
HMN4103 IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
|
HMN4101 IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
|
PMMN4083 IMPRES RSM Windporting, Rugged (IP68) |
|
PMMN4084 IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
|
PMMN4099 IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55) |
|
PMMN4062 IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
|
PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
|
PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
PMMN4061 IMPRES Windporting Public Safety Microphone (30 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
|
PMMN4060 IMPRES Windporting Public Safety Microphone (24 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
|
PMMN4059 IMPRES Windporting Public Safety Microphone (18 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
