Motorola Solutions

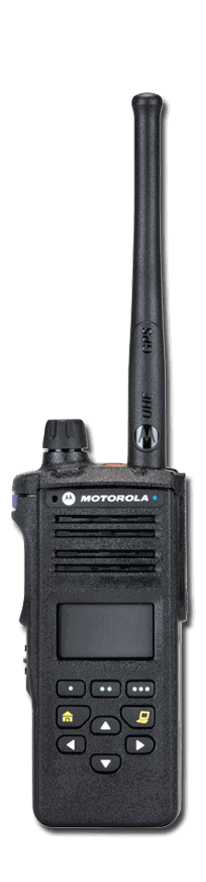

The APX 4000 delivers all the benefits of P25 Phase 2 technology in a compact and powerful portable radio. Easy to use, tough as nails, at a value that's hard to beat, it connects first responders with each other, and with public works, utilities and rural public safety users for fast, seamless communications.
Durable enough to withstand dust, heat, shock and submersion, the APX 4000 is IP67 and MIL-STD certified. It's packed with key features to help keep you safe, like mission-critical wireless, two-microphone noise suppression, GPS outdoor location and AES encryption.
Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF
Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
900 (896-901, 935-940 MHz)
VHF (136-174 MHz)
UHF R1 (380-470 MHz)
UHF R2 ( 450-520 MHz)
Power Output:
1-5 Watts Max
Number of Channels/Groups/Zones:
512 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
8-10 hours
Channel spacing:
6.25 kHz, 12.5 kHz, 25 kHz
Dimensions H x W x D (with standard battery)
5.26 x 2.37 x 1.72
Weight (with standard battery)
9.17 oz
Keypad / Keys
Model 2 Backlight keypad, 3 soft keys, 4 direction Navigation key, Home and Data buttons
Model 3 Backlight keypad, 3 soft keys, 4 direction Navigation key, 4x3 keypad, Home and Data buttons
Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 3 menus,
White backlight
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54, IP67
Simplified controls
With two dedicated control knobs, one for volume and the other for channel and talkgroup selection, you can operate the radio by touch, even in complete darkness
Integrated GPS
Enables accountability and location tracking of an individual, which can be sent to a map-based location application. Optional feature and requires ASTRO 25 Integrated Voice and Data.
Encryption
Optional FIPS 140-2 Level 3 AES certified hardware encryption provides tamper-proof security to ensure secure communications.
Text messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages. Optional feature and requires ASTRO 25 Integrated Voice and Data.
Over-the-air programming
Motorola's POP25 solution allows portable and mobile radios to be programmed over the air via the ASTRO 25 systems while remaining in the field. Optional feature and requires ASTRO 25 Integrated Voice and Data.
NAF5085 700/800 MHz, GPS Whip Antenna |
|
PMAE4065 UHF, GPS Whip Antenna |
|
NAR6593 VHF, GPS Whip Antenna |
|
PMAF4008 900 MHz, GPS Antenna |
|
NAR6595 1/4 Wave, 700/800 MHz, GPS Stubby Antenna |
|
FAF5259 UHF Range 1, GPS Stubby Antenna |
|
FAF5260 UHF Range 2, GPS Stubby Antenna |
NNTN8128 IMPRES Li-Ion 2000 mAh Slim, Submersible, Battery-IP67 |
|
NNTN8560 APX 4000 two knob radio IMPRES Hi-Cap Li-Ion 2500 mAh battery Submersible (IP57), Intrinsically Safe (TIA4950) |
|
PMNN4424 IMPRES Li-Ion 2350 mAh Submersible, Battery-IP67 |
|
PMNN4448 IMPRES Li-Ion 2800 mAh Submersible, Battery-IP67 |
NTN2570 Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod |
|
NTN2571 Mission-Critical Wireless push-to-talk pod |
|
NNTN8442 Mission-Critical Wireless Remote Control Keyfob with programmable buttons |
|
PMLN7052 1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods |
|
NNTN8294 1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black |
|
NNTN8295 1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black |
|
NNTN8296 Covert Audio Kit for Mission-Critical Wireless PTT Pod |
|
NNTN8385 Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod |
|
RLN4920 neck loop for Discreet Earpiece Kit |
|
NNTN8434 Accessory Kit, Completely Discreet Wireless Surveillance Kit |
|
NTN2572 Replacement Wireless Earpiece 12-inch cable |
|
RLN6489 Mission-Critical Wireless Covert Pack-N-Go Kit, Basic. Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit |
|
RLN6501 Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced. Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter |
PMLN6085 Leather Carry Case with 2.5” Swivel Belt Loop |
|
PMLN7182 Carry case for APX 4000 two knob radios |
|
PMLN7229 Replacement belt loop for PMLN7182 |
|
PMLN4651 2” Hard Plastic Belt Clip |
|
PMLN7008 2.5” Hard Plastic Belt Clip |
|
PMLN5407 Replacement 2.5” Leather Swivel Belt Loop |
|
PMLN5408 Replacement 2.75” Leather Swivel Belt Loop |
|
PMLN5409 Replacement 3” Leather Swivel Belt Loop |
|
4200865599 1.75” Wide Leather Belt |
|
NTN5243 Adjustable Nylon Carrying Strap |
PMPN4174 IMPRES Single-Unit Charger, 115V |
|
PMPN4284 IMPRES Multi-Unit Charger, 115V |
|
BR000272A01 Wall mount bracket for PMPN4284 Charger |
NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger |
|
NNTN8525 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
PMLN5653 IMPRES Ear Microphone with Bone Conduction and programmable button, black |
|
0180300E25 Earguard with Adjustable Loop |
PMLN6125 1-Wire Receive-only earpiece, black |
|
PMLN6126 1-Wire Receive-only earpiece, beige |
|
PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
|
PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
|
PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
|
PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
|
PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
|
PMLN6124 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige |
|
ZMN6038 2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
ZMN6039 3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
ZMN6032 2-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
ZMN6031 3-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
|
BDN6664 1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
|
BDN6726 1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6665 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6727 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
RLN5314 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded. Requires BDN6783 |
|
RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
|
RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
|
BDN6666 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6728 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6667 2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6669 2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
|
BDN6731 2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6668 3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6730 3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
|
BDN6670 3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
|
BDN6732 3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
PMLN5101 IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair) |
|
PMLN5096 Earset D-Shell |
|
PMLN5102 Ultra Lite Headset |
|
RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit |
|
PMLN5275 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
|
RLN6490 XBT Operations-Critical Wireless Behind-the-Neck Headset |
|
RLN6491 XBT Operations-Critical Wireless Headband Style Headset |
RMN5137 MT Series Over-The-Head Headset, direct radio connect PELTOR PART NUMBER: MT7H79A-C5063-34 |
|
RMN5138 MT Series Neckband Headset, direct radio connect PELTOR PART NUMBER: MT7H79B-C5063-34 |
|
RMN5139 MT Series Hard Hat Attached Headset, direct radio connect PELTOR PART NUMBER: MT7H79P3E-C5063-34 |
PMLN6088 MT Series Over-the-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79A-34 |
|
RLN6477 MT Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79B-34 |
|
RMN4051 MT Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79P3E-34 |
|
RMN4052 TacticalPro Series Over-The-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7A-34 |
|
RMN5135 TacticalPro Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7B-07-34 |
|
RMN4053 TacticalPro Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7P3E-34 |
|
PMLN6095 PTT Nexus Adapter PELTOR PART NUMBER:FL5063-34 |
RMN4055 HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79A-34 |
|
RMN5132 HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79B-34 |
|
RMN5133 HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79P3E-34 |
NMN6271 IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button. Rugged, Submersible (IP68) |
|
NMN6274 IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55) |
|
RLN6554 Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120) |
|
HMN4104 IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
|
HMN4103 IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
|
HMN4101 IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
|
PMMN4083 IMPRES RSM Windporting, Rugged (IP68) |
|
PMMN4084 IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
|
PMMN4099 IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55) |
|
PMMN4062 IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
|
PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
|
PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
