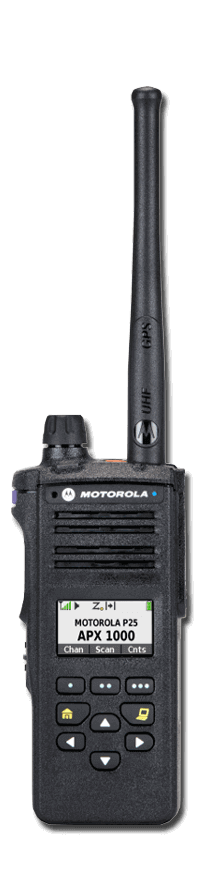

The APX 1000 provides a complete and complementary look and feel to the APX family of P25 TDMA radios. With a two-microphone design to reduce background noise and excellent RF coverage, the APX 1000 is engineered to give you the smallest P25 Phase 2 capable radio on the market today. Engineered with a simplified control top to ensure ease of use, the APX 1000 is the ideal solution for local government and public works users who require quality P25 functionality.
Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF
Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
900 (896-901, 935-940 MHz) Two-Knob Model Only
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-5 Watts Max
Number of Channels/Groups/Zones:
512 Channels
Standard battery chemistry type:
Lithum Ion
Battery life (based on a 5-5-90 duty cycle):
8-10 hours
Battery life - extended (based on a 5-5-90 duty cycle):
10-12 hours
Channel spacing:
6.25 kHz, 12.5 kHz, 25 kHz
Dimensions H x W x D (with standard battery)
5.26" x 2.37" x 1.72"
Weight (without standard battery)
8.22 oz.
Keypad / Keys
MODEL 1.5: Backlight keypad 3 soft keys
MODEL 2:Backlight keypad, 3 soft keys, 4 direction navigation key, Home and Data buttons
MODEL 3:Backlight keypad, 3 soft keys, 4 direction navigation key, 4x3 keypad, Home and Data buttons
Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 3 menus, White backlight
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54
Compact design
Smallest P25 Phase 2 TDMA-capable radio available.
Full-size keypad
Simple to navigate and use.
Color display
High-contrast color display is easy to read in all kinds of light.
Multifunction knob
The multifunction knob is designed for ease of use by combining volume, channel, and ON/OFF settings in one.
Dual microphones
Dual microphone noise suppression technology locates the talker and cancels out any background noise.
AMBE vocoder
Equipped with the latest AMBE +2 digital voice vocoder.
Three radio models
Three radio models allow the user to select the device that best suits the end users environment.
Intelligent lighting
Uses color to notify you of the radio mode, potential emergencies, or specific events. Color alerts provide information at a glance.
Radio profiles
Adjust audio levels, lighting and tones through user selected or automated options. Whether on surveillance or working in bright sunlight, you can customize settings as needed.
Text messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages.
Voice announcement
Audible, pre-recorded voice file provides a description of the selected channel or zone.
Over-the-air programming
Motorola's POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field.
P25 Phase 2 - TDMA
Twice the voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure.
 | NAF5085 700/800 MHz, GPS Whip Antenna |
 | PMAE4065 UHF, GPS Whip Antenna |
 | NAR6593 VHF, GPS Whip Antenna |
 | NAR6595 1/4 Wave, 700/800 MHz, GPS Stubby Antenna |
 | FAF5259 UHF Range 1, GPS Stubby Antenna |
 | FAF5260 UHF Range 2, GPS Stubby Antenna |
 | NNTN8128 IMPRES Li-ion 2000 mAh Slim, Submersible, Battery-IP67 |
 | NNTN8560 APX 4000 two knob radio IMPRES Hi-Cap Li-ion 2500 mAh battery Submersible (IP57), Intrinsically Safe (TIA4950) |
 | PMNN4424 IMPRES Li-ion 2350 mAh Submersible, Battery-IP67 |
 | PMNN4448 IMPRES Li-ion 2800 mAh Submersible, Battery-IP67 |
 | PMLN6085 Leather Carry Case with 2.5” Swivel Belt Loop |
 | PMLN7182 Carry case for APX 4000 two knob radios |
 | PMLN7229 Replacement belt loop for PMLN7182 |
 | PMLN4651 2” Hard Plastic Belt Clip |
 | PMLN7008 2.5” Hard Plastic Belt Clip |
 | PMLN5407 Replacement 2.5” Leather Swivel Belt Loop |
 | PMLN5408 Replacement 2.75” Leather Swivel Belt Loop |
 | PMLN5409 Replacement 3” Leather Swivel Belt Loop |
 | PMPN4174 IMPRES Single-Unit Charger, 115V |
 | PMPN4284 IMPRES Multi-Unit Charger, 115V |
 | BR000272A01 Wall mount bracket for PMPN4284 Charger |
 | NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger |
 | NNTN8525 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
 | PMLN5653 IMPRES Ear Microphone with Bone Conduction and programmable button, black |
 | 0180300E25 Earguard with Adjustable Loop |
 | PMLN6125 1-Wire Receive-only earpiece, black |
 | PMLN6126 1-Wire Receive-only earpiece, beige |
 | PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
 | PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
 | PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6124 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | ZMN6038 2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6039 3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6032 2-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6031 3-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | BDN6664 1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
 | BDN6726 1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| BDN6665 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6727 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| RLN5314 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded. Requires BDN6783 |
 | RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
 | RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
| BDN6666 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
| BDN6728 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| BDN6667 2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6669 2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
 | BDN6731 2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | BDN6668 3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6730 3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | BDN6670 3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6732 3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | PMLN5101 IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair) |
 | PMLN5096 Earset D-Shell |
 | PMLN5102 Ultra Lite Headset |
 | RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit |
 | PMLN5275 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
 | PMMN4062 IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
 | PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
 | RLN4941 Receive-Only Earpiece with Comfort Eartube, FM approved |
| BDN6781 Receive-Only Earpbud, Single Wire, Threaded 3.5 mm connector |
 | RLN6511 EP7 Sonic Defender, use with RLN4941 |
 | AARLN4885 Receive-Only Covered Earbud with coiled cord |
| RLN4941 Receive-Only Earpiece with translucent tube and rubber eartip |
 | PMLN4620 D-Shell Rx-Only Earpiece |
 | WADN4190 Receive-Only Flexible Earpiece |
 | RMN5116 Receive and Transmit Boomless Temple Transducer (for HMN4104, HMN4103 and HMN4101 only) |
 | RLN6424 Receive-Only Earpiece with translucent tube and rubber eartip (for HMN4104, HMN4103 and HMN4101 only) |
 | PMKN4107 Display RSM Interface Cable, 5-Pin Nexus Female Receptacle |
 | PMKN4112 Display RSM Interface Cable 4-Pin Nexus Male Plug |
 | PMKN4113 Display RSM Interface Cable, 12-Pin Hirose Male Connector |
