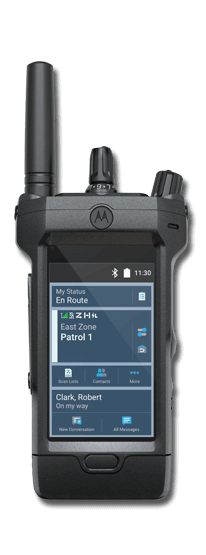

A Massive Advance in Mission-Critical Voice and Data
Your radio is your lifeline. APX NEXT is our next step in advancing it. It's designed to military standards for extreme ruggedness. The touchscreen works with or without gloves—in rain, dirt, and dust. Digital mics and high-power speakers deliver our best audio ever, while SmartConnect keeps you connected even beyond your P25 system. The result is a radio that works when you need it, without pause, distraction or doubt.
Effortless is Always in Reach
APX NEXT is designed for effortless usability when everything is on the line. Intuitive knobs and buttons are easily distinguished by touch. A mission-critical touchscreen makes it fast and easy to operate your radio. ViQi understands a huge range of natural language voice commands, so you can operate the radio with eyes-up awareness. Every interaction is simple, fast and logical. You stay focused on what matters—your mission and your safety.
Bring New Intelligence to the Point of Engagement
APX NEXT mission-critical apps bring new intelligence to the field. ViQi enables natural language database queries, rapidly giving vital information, and letting dispatchers stay focused on critical situations. And as part of our unique, end-to-end public safety ecosystem, APX NEXT data and operations are secure, and new capabilities can be seamlessly added as your needs evolve.
Frequency Band:
VHF, UHF R1, UHF R2, 700/800 MHz
Frequency Range:
700/800 (764-870 MHz), VHF (136-174 MHz), UHF R1 (380-470 MHz), UHF R2 (450-520 MHz)
Power Output:
1-3 watts/700/800 MHz, 1-6 watts/VHF, 1-5 watts/UHF
Channel spacing:
12.5 / 20 / 25 kHz
Dimensions H x W x D (with standard battery)
5.4" x 2.5" x 1.7"
Weight (with standard battery)
18.5 oz.
Keypad / Keys
Touchscreen
Display
3.6” Mission-critical Touchscreen: 800x480 TFT 24-bit Full
Color Transflective Display, 1 mm Toughened Glass Lens
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
Dust Resistance: IP6X
Water Resistance (Submersion): IPX8
ViQi Voice Control
Operate your radio using simple voice commands.
While it's easy to change settings on your APX NEXT™ radio using the traditional hard controls or the touchscreen soft controls, there are situations where you need to keep your eyes up and stay focused on your environment.
Using ViQi Voice Control, you can operate the radio with your voice. From switching channel and zone, to adjusting the volume, to changing your audio profile, all you need to do is press and hold the ViQi button, and speak into the mic.
There are 13 available actions, each accessible using several intuitive commands. With multiple options, you'll find a ViQi command to suit you.
ViQi Voice Control is optimized for public safety situations, and performs well in high-noise environments. The 3-dot buttons on the APX NEXT radio and RSM are configured as the ViQi button by default. Through RadioCentral™, the ViQi function can be assigned to any other programmable control except the purple “monitor” button.
Motorola APX NEXT Features
Motorola APX NEXT Featured Applications
ViQi Virtual Assistant
With ViQi at your side, it's faster and easier to run routine database queries. Dispatchers can focus on responding to the most critical situations. And the intelligence that keeps responders safe is moved to the field, faster than ever.
SmartProgramming
Your radios should be in the field, not in the shop. SmartProgramming enables you to update your APX NEXT radios with zero touch. Encryption keys and software patches can be automatically pushed via broadband.
SmartLocate
Your officers never need to be alone, even while on lone patrol. SmartLocate on APX NEXT provides location updates every few seconds, so you always know where your team is, while freeing critical capacity of your P25 system for other uses.
SmartConnect
Stay connected to your P25 radio system even when outside of P25 coverage. SmartConnect maintains your P25 voice and data communications by automatically switching between P25 and broadband.
SmartConnect
SmartLocate
SmartMapping
SmartMessaging
SmartProgramming
SmartTouch
ViQi Virtual Assistant
AN000296A01 760-870 Mhz 2.6” Stubby Antenna |
|
AN000297A01 136-174MHz, 380-520MHz, 760-870MHz, 7.9” Antenna |
|
AN000392A01 700/800 MHz, Short Whip Antenna |
|
AN000393A01 UHF, 350-520 MHz, Short Whip Antenna |
|
AN000369A01 UHF, 380-470 MHz, Stubby Antenna |
|
AN000369A02 UHF, 450-527 MHz Stubby Antenna |
|
32012144001 Gray Antenna ID Band (pack of 10) |
|
32012144002 Yellow Antenna ID Band (pack of 10) |
|
32012144003 Green Antenna ID Band (pack of 10) |
|
32012144004 Blue Antenna ID Band (pack of 10) |
|
32012144005 Purple Antenna ID Band (pack of 10) |
NNTN9216 IMPRES2 4400 mAh Battery |
|
NNTN9217 IMPRES2 4400 mAh Battery UL Div 2 |
|
NNTN9089 IMPRES2 5650 mAh Battery |
|
NNTN9090 IMPRES2 5650 mAh Battery UL Div 2 |
NNTN8266 2.5" Belt Clip |
|
PMLN5407 Replacement 2.5” Leather Swivel Belt Loop |
|
PMLN5408 Replacement 2.75” Leather Swivel Belt Loop |
|
PMLN5409 Replacement 3” Leather Swivel Belt Loop |
|
PMLN7947 Motorola PMLN7947 – Holster |
|
PMLN7948 Hybrid Leather Carry Case |
|
PMLN7964 Hybrid Leather Carry Case |
|
PMLN7965 3” Hard Plastic Belt Clip |
NNTN9115 IMPRES 2 Multi-Unit Charger |
|
NNTN9199 IMPRES 2 Single-Unit Charger |
|
NNTN9212 APX NEXT Pocket (Only for use with NNTN8844) |
|
PMPN4604 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
|
PMPN4591 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA 100-240V |
|
AS000178A01 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
|
NLN7967 Wall Mount Bracket for IMPRES 2 Multi-Unit Chargers |
PS000040A01 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
|
PS000116A01 Replacement Power Supply for IMPRES 2 Single-Unit Fast Charger, 100-240 VAC without Power Cord |
|
3087791G01 Power Cord for IMPRES 2 Multi-Unit Charger, US/CAN Plug |
|
PS000040A02 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
PMPN4639 APX Next Vehicle Charger |
AARLN4885 Receive-Only Covered Earbud with coiled cord |
|
PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
|
BDN6783 3.5mm Threaded Audio Adapter |
|
PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
|
RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
|
RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
|
PMLN8120 Receive-Only Earpiece with Translucent Tube, Loud Audio (for PMMN4135 & PMMN4136) |
|
PMLN8092 Replacement Translucent Tube with Rubber Eartip for PMLN8120 |
PMMN4132 XVE500 High Impact Green, Channel Knob, Xtreme Temperature Cable
|
|
PMMN4132_BLK XVE500 Black Housing, Channel Knob, Xtreme Temperature Cable
|
|
PMMN4137 XVE500 High Impact Green, No Channel Knob, Xtreme Temperature Cable
|
|
PMMN4137_BLK XVE500 Black Housing, No Channel Knob, Xtreme Temperature Cable
|
|
PMMN4135 XVP850 RSM with Channel Knob
|
|
PMMN4136 XVP830 RSM without Channel Knob
|
30009402007 Xtreme Temperature Replacement Cable for XVE500 RSM
|
|
PMLN7633 XVE500 RSM Clip Assembly with brass insert designed to work with the Boston Leather Straps (AY000223A01, AY000229A01) requires Clip Button NNTN8749
|
|
PMLN7653 Replacement Channel Knob for XVE500 RSM (20pcs per pack)
|
|
NNTN8749 Clip Button
|
|
PMLN8312 Low profile swivel clip with D-ring (10pcs per pack)
|
|
PMKN4260 Replacement coil cord
|
|
PMLN8313 Replacement channel knob (20pcs per pack)
|
