Motorola Solutions apx-next-xe

Motorola Solutions

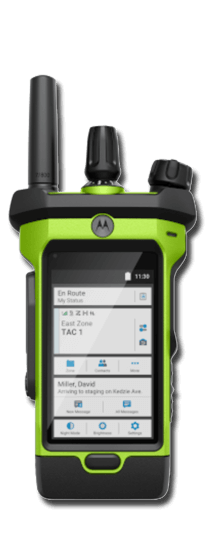

APX NEXT XE

DISCOVER THE POSSIBILITIES WITH APX NEXT™ XE

ALL-BAND P25 SMART RADIO.
FOCUSED IN THE EXTREME.

Motorola Solutions’ latest development in their mission to advance the lifeline for public safety communications, APX NEXT XE builds on the values of APX XE by delivering new and groundbreaking capabilities.

MISSION-CRITICAL DEVICE

FirstNet Certified and designed to military standards for ruggedness in extreme environments. Exaggerated controls now paired with a Gorilla Glass 3 touchscreen, combined with a user interface purpose-built for public safety that works with or without gloves - in the hottest, wettest, grittiest conditions. Every interaction is simple, fast and logical so you can stay focused on what matters most - your call, your crew and your safety.

Performance Characteristics

Frequency Band:
VHF, UHF R1, UHF R2, 700/800 MHz

Frequency Range:
700/800 (764-870 MHz), VHF (136-174 MHz), UHF R1 (380-470 MHz), UHF R2 (450-520 MHz)

Power Output:
1-3 watts/700/800 MHz, 1-6 watts/VHF, 1-5 watts/UHF

Channel spacing:
12.5/20/25 kHz

Physical Characteristics

Dimensions H x W x D (with standard battery)
5.4"x2.5"x1.7"

Weight (with standard battery)
18.5 oz.

Keypad/Keys
Touchscreen

Display
3.6" Mission-critical Touchscreen: 800x480 TFT 24-bit Full Color Transflective Display, 1 mm Toughened Glass Lens

User Environment

Operating temperature
-30ºC / +60ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
Dust Resistance: IP6X
Water Resistance (Submersion): IPX8

Request A Quote

ADVANCED MISSION-CRITICAL VOICE AND DATA. ROOTED IN SAFETY

In high-stress and extreme situations, efficient team communication can help make the difference between life and death. Your radio is your lifeline.

Motorola Solutions' APX Next XE is the next step in advancing it. A radio that works when you need it, without distraction or doubt.

Mission-critical performance and best-in-class audio ensure your lifeline is there when you need it. A rugged design, purpose-built for extreme environments. Exaggerated controls make it easy to operate with or without gloves. Natural interfaces - from touchscreens to voice controls - keep your focus where it matters, when it matters. Ultra-connectivity gives you public safety LTE, Bluetooth and Wi-Fi. And new applications and services, SmartConnect and ViQi, bring new intelligence to the field.

APX NEXT XE reduces configuration time and update cycles from months to minutes. Radios can be provisioned and updated in the cloud, and new capabilities - like video, data analytics and AI applications - can be added as your needs evolve.

APX NEXT XE brings usability and performance advancements to every aspect of the radio experience. Interfaces are streamlined. Workflows are accelerated. Mission-critical reliability is ensured. And the focus that keeps firefighters safe and effective in extreme environments is protected.

Motorola AN000296A01

AN000296A01

760-870 Mhz 2.6” Stubby Antenna

Motorola AN000297A01

AN000297A01

136-174MHz, 380-520MHz, 760-870MHz, 7.9” Antenna

Motorola AN000392A01

AN000392A01

700/800 MHz, Short Whip Antenna

Motorola AN000393A01

AN000393A01

UHF, 350-520 MHz, Short Whip Antenna

Motorola AN000369A01

AN000369A01

UHF, 380-470 MHz, Stubby Antenna

Motorola AN000369A02

AN000369A02

UHF, 450-527 MHz Stubby Antenna

Motorola 32012144001

32012144001

Gray Antenna ID Band (pack of 10)

Motorola 32012144002

32012144002

Yellow Antenna ID Band (pack of 10)

Motorola 32012144003

32012144003

Green Antenna ID Band (pack of 10)

Motorola 32012144004

32012144004

Blue Antenna ID Band (pack of 10)

Motorola 32012144005

32012144005

Purple Antenna ID Band (pack of 10)

Motorola IMPRES Two-way Batteries

Motorola NNTN9217

NNTN9217

IMPRES2 4400 mAh Battery UL Div 2

Motorola NNTN9090

NNTN9090

IMPRES2 5650 mAh Battery UL Div 2

Motorola PMLN8208

PMLN8208

APX NEXT XE Classic Holster

Motorola PMLN8209

PMLN8209

APX NEXT XE Boston Leather Carry Case

Motorola PMLN8328

PMLN8328

APX NEXT XN Boston Leather Carry Case

Motorola AY000223A01

AY000223A01

Boston Leather Fireman’s Radio Strap with button back holder

Motorola AY000229A01

AY000229A01

Boston Leather Fireman’s Radio Strap with button back holder - XL

Motorola RLN6488

RLN6488

Boston Leather Anti-Sway Strap for Boston Leather Fireman’s Radio Strap

Motorola RLN6486

RLN6486

Boston Leather Fireman’s Radio Strap

Motorola NNTN8266

NNTN8266

2.5” Hard Plastic Belt Clip

Motorola PMLN7965

PMLN7965

3” Hard Plastic Belt Clip

Desktop, Single & Multi-unit Chargers

Motorola NNTN9115

NNTN9115

IMPRES 2 Multi-Unit Charger

Motorola NNTN9199

NNTN9199

IMPRES 2 Single-Unit Charger

Motorola NNTN9212

NNTN9212

APX NEXT Pocket (Only for use with NNTN8844)

Motorola PMPN4604

PMPN4604

IMPRES 2 Single-Unit Fast Charger, US/NA 115V

Motorola PMPN4591

PMPN4591

IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA 100-240V

Motorola AS000178A01

AS000178A01

Pocket to use with IMPRES 2 Multi-Unit Fast Charger

Motorola NLN7967

NLN7967

Wall Mount Bracket for IMPRES 2 Multi-Unit Chargers

Motorola PS000040A01

PS000040A01

Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V

Motorola PS000116A01

PS000116A01

Replacement Power Supply for IMPRES 2 Single-Unit Fast Charger, 100-240 VAC without Power Cord

Motorola 3087791G01

3087791G01

Power Cord for IMPRES 2 Multi-Unit Charger, US/CAN Plug

Motorola PS000040A02

PS000040A02

Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V

Travel Chargers

Motorola PMPN4639

PMPN4639

APX Next Vehicle Charger

Surveillance Kits & Earpieces

Motorola PMLN8120

PMLN8120

Receive-Only Earpiece with Translucent Tube, Loud Audio (for PMMN4135 & PMMN4136)

Motorola PMLN8092

PMLN8092

Replacement Translucent Tube with Rubber Eartip for PMLN8120

Remote Speaker Microphone (RSM)

Motorola PMMN4132

PMMN4132

XVE500 High Impact Green, Channel Knob, Xtreme Temperature Cable

Motorola PMMN4132_BLK

PMMN4132_BLK

XVE500 Black Housing, Channel Knob, Xtreme Temperature Cable

Motorola PMMN4137

PMMN4137

XVE500 High Impact Green, No Channel Knob, Xtreme Temperature Cable

Motorola PMMN4137

PMMN4137_BLK

XVE500 Black Housing, No Channel Knob, Xtreme Temperature Cable

Motorola PMMN4135

PMMN4135

XVP850 RSM with Channel Knob

Motorola PMMN4136

PMMN4136

XVP830 RSM without Channel Knob

Motorola 30009402007

30009402007

Xtreme Temperature Replacement Cable for XVE500 RSM

Motorola PMLN7633

PMLN7633

XVE500 RSM Clip Assembly with brass insert designed to work with the Boston Leather Straps (AY000223A01, AY000229A01) requires Clip Button NNTN8749

Motorola PMLN7653

PMLN7653

Replacement Channel Knob for XVE500 RSM (20pcs per pack)

Motorola NNTN8749

NNTN8749

Clip Button

Motorola PMLN8312

PMLN8312

Low profile swivel clip with D-ring (10pcs per pack)

Motorola PMKN4260

PMKN4260

Replacement coil cord

Motorola PMLN8313

PMLN8313

Replacement channel knob (20pcs per pack)

H55TGT9PW8AN APX NEXT; ALL-BAND MODEL 4.5 PORTABLE
