Motorola Solutions

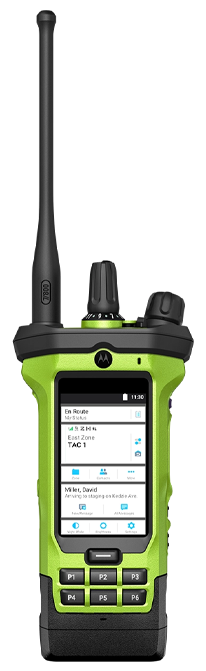

APX N70 XE

Keeping firefighters safe, focused and always in touch during critical moments

Made for firefighters and EMS, it combines high tier adaptive audio with intuitive operation, advanced connectivity, and streamlined device management. Every element of the rugged, ergonomic design maximizes task performance in unpredictable situations.

Performance Characteristics

Frequency Band:
700/800 Mhz

Frequency Range:
762-776, 792-806 MHz; 806-825, 851-870 MHz

Power Output:
1-3 Watt

Number of Channels/Zones:
3000 Channels / 200 Zones

Channel spacing:
12.5 / 20 / 25 kHz

Physical Characteristics

Dimensions H x W x D (with standard battery)
6.3 x 2.4 x 1.9 inches

Weight (with standard battery)
20.9 oz

Display
Front: 3.0” Corning® Gorilla® Glass touch screen: 360x600 TFT 24-bit Full Color Transflective Display
Top:1.2” Top Display: 200x112 TFT 18-bit Color Transflective Screen, 1 Line of Icons, 2 Lines of Text, 14 Characters per Line, 2 mm Toughened Glass Lens

User Environment

Operating temperature
(-22 to +140 ºF)

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)

Request A Quote

Ensuring fire personnel stay safe, focused and connected during the most challenging incidents

Easy to use and manage, the APX N70 XE keeps firefighters and other first responders informed and connected with crystal-clear speech quality. It offers seamless on-the-go access to productivity-focused apps and services that enhance situational awareness and tighten collaboration between team members.

Features

Tough, familiar, and ready to handle any challenge
Adaptive audio, responsive to your environment
LTE, WiFi and Bluetooth for ultra-connectivity
T-grip design to securely hold on to the radio
UL, Div 1 HAZLOC battery for extreme conditions
3” Corning® Gorilla® Glass touch screen
Smart applications, for intelligence in the field
Over-the-air programming with RadioCentral

Capabilities

Rugged performer
Differing knob shapes and sizes that feel "just right" allow firefighters to operate safely and confidently on a radio they already know and trust. Its controls are easy to operate, and programmable buttons provide quick access to key functions. The toughened touchscreen and secondary display ensure optimal functionality and visibility, even when wearing gloves or when the radio is holstered. Hands-free voice commands and Fall Alert further enhance user safety and ease of use.

Maximum clarity
Loud, clear audio ensures crucial messages are heard. Dual HDR mics pick up a firefighter’s voice, even when workers are shouting in stressful situations. Volume is automatically adjusted so loud or soft talkers are heard. Feedback suppression cuts the howl of feedback when colleagues’ radios are in close proximity. The powerful speaker maximizes intelligibility in noisy environments, doubling as a Speaker As Mic (SAM) that filters wind and background noise without impairing quality.

Intelligence beyond P25
Seamless switching between P25 and LTE/Wi-Fi maintains wide-area connection and supports responders with workflow-boosting apps. SmartLocate gives a rapid fix on colleagues' positions. SmartMessaging adds photos/videos to incident descriptions. SmartMapping pinpoints nearby personnel. SmartIncident consolidates assignments, CAD comments, and resource/hazard views. SmartProgramming speeds over-the-air radio updates, keeping radios active in the field.

Streamlined ownership
Streamlined fleet set-up and management saves time and reduces costs. Software updates are pushed to devices in the field over Wi-Fi or LTE. An efficient web-based interface eliminates the need to recall radios for manual updates. Touchless Key Provisioning delivers encryption keys and updates over the air, ensuring that critical voice and data communications are never at risk of interception.

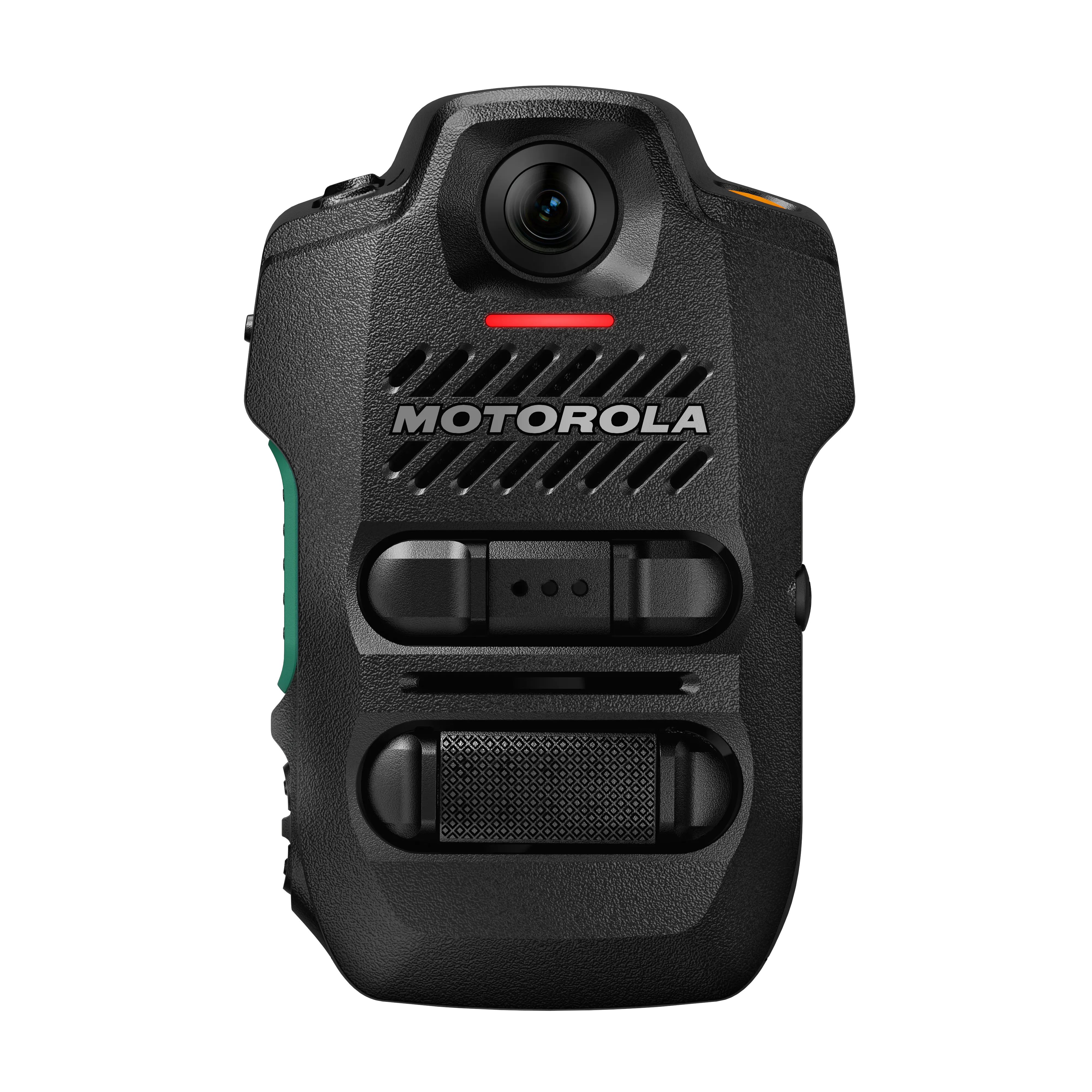

SVX Video Remote Speaker Microphone

Voice and video, combined without compromise

What if your life was simpler? By converging our industry-leading APX NEXT and APX N70 radio lines and body camera technology, we’ve transformed what it means to be on the front line. Now, your team can get the best of both worlds, by accessing mission-critical communications, evidential video capture and public safety-grade AI from one device, without sacrificing usability.

Learn more about the SVX Video Remote Speaker Microphone
