Motorola Solutions

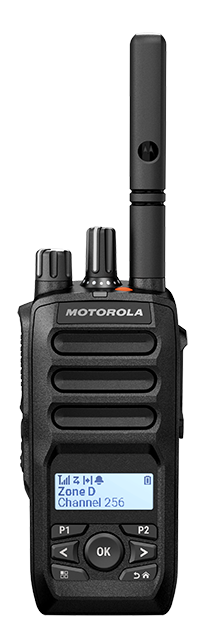

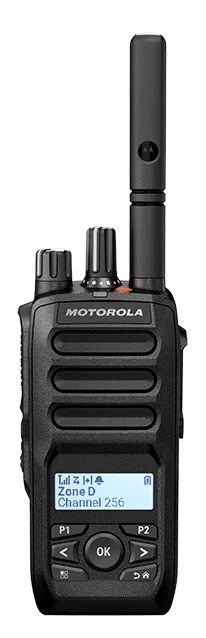

MOTOTRBO R5 connects teams, helping boost efficiency and safety with clear, loud audio that cuts through background noise and intuitive status indications and controls so workers can focus on their tasks, all in a tough, compact device that’s built to last.
Frequency bands:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz
UHF: 400-512 MHz
Number of Channels/Groups/Zones:
Limited Keypad Model: 256 Channels/ 50 Zones
Non-Keypad Model: 64 Channels/ 4 Zones
Power Output:
VHF: 5 Watts
UHF: 4 Watts
Channel Spacing:
12.5 / 25 kHz
Battery Life
MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
Digital / Analog Battery Life: 32 / 24 hrs
MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
Digital / Analog Battery Life: 32 / 24 hrs
MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888))
Digital / Analog Battery Life: 21.5 / 16 hrs
Dimensions H x W x D (with standard battery)
MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
4.82 x 2.2 x 1.6 inches
MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
4.82 x 2.2 x 1.6 inches
MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888)
4.82 x 2.2 x 1.37 inches
Weight (with standard battery)
MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
11.2 oz
MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
11.7 oz
MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888))
10 oz
Operating temperature
-22 °F to 140 °F
Mil spec
IP Standards
IP67
R5’s loud, clear audio helps the message get through the first time, whether conditions are noisy or quiet.
Loud
If workers can’t hear messages above noisy vehicles, a cheering crowd or
heavy plant machinery, safety and efficiency can be compromised. R5’s powerful built-in speaker delivers loud audio so workers can hear messages above background noise and users can even select an extra-loud audio profile for up to 106 phons loudness in extremely noisy environments. A wide
selection of headsets and earpieces is also available to allow workers to hear messages discreetly or in high-noise workplaces.
Clear
R5 features a sophisticated AItrained noise suppression algorithm for advanced background noise reduction to help ensure messages are transmitted clearly. Software embedded in the device distinguishes between the talker’s voice and the various types of surrounding noise such as vehicles, crowds and heavy machines; speech is retained while ambient noise is significantly reduced. The MOTOTRBO R5’s low distortion wideband speaker plays received messages loud and clear to help prevent miscommunication.
Consistent
R5 is designed to optimize audio performance across a wide range of workplace environments and worker profiles so users don’t need to constantly adjust the radio volume. Its IMPRES™ technology and Received Audio Leveling smooth out the differences in users’ voice level and
microphone placement. Intelligent Audio adjusts the radio output to avoid blaring messages or missed calls, adapting to changes in the background volume or as workers move between noisy and quiet environments.
Optimized controls, tactile buttons and long battery runtime make R5 easy and intuitive to use all day long so workers can focus on their job, not their radio.
R5 has been designed to withstand the knocks and drops of the workplace so it will work as well in the future as it does today.
 | PMAE4079 UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz) |
 | PMAD4117 VHF/GPS Combination Helical Antenna (136-155 MHz) |
 | PMAD4116 VHF/GPS Combination Helical Antenna (144-165 MHz) |
 | PMAD4118 VHF/GPS Combination Helical Antenna (152-174 MHz) |
 | PMAE4069 UHF/GPS Combination Stubby Antenna (403-450 MHz) |
 | PMAE4070 UHF/GPS Combination Stubby Antenna (440-490 MHz) |
 | PMAE4071 UHF/GPS Combination Stubby Antenna (470-527 MHz) |
 | PMAD4119 VHF/GPS Combination Stubby Antenna (136-148 MHz) |
 | PMAD4120 VHF/GPS Combination Stubby Antenna (146-160 MHz) |
 | PMAD4147 VHF Whip Antenna 136-174 MHz |
 | PMAD4121 VHF Stubby Antenna (160-174 MHz) |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
 | PMNN4888 IMPRES Slim Li-Ion IP67 2200 mAh |
| PMNN4889 IMPRES High Capacity Li-Ion IP67 3200 mAh |
| PMNN4890 IMPRES UL High Capacity Li-Ion IP67 3200 mAh |
| PMLN8662 Hard Leather Carry Case, 3” Swivel Belt Loop For Limited Keypad Radio |
| PMLN8663 Hard Leather Carry Case, 3” Fixed Belt Loop For Limited Keypad Radio |
| PMLN8664 Nylon Case, 3” Fixed Belt Loop For Limited Keypad Radio |
| PMLN8665 Hard Leather Carry Case, 3” Swivel Belt Loop For No Keypad Radio |
| PMLN8666 Hard Leather Carry Case, 3” Fixed Belt Loop For No Keypad Radio |
| PMLN8667 Nylon Case, 3” Fixed Belt Loop For No Keypad Radio |
| PMPN4527 Desktop IMPRES Single Unit Charger |
| PMLN7269ANS Receive Only Extra Loud Earpiece, 3.5mm Jack (Black Color) |
Please contact us for more information
| PMMN4170 RM560 Remote Speaker Microphone, with 3.5mm Audio Jack, IP67 |
| PMMN4171 RM530 Remote Speaker Microphone, with 3.5mm Audio Jack, IP67 |
The Motorola MOTOTRBO R5 is available in the following models.
