Motorola Solutions CP185 Portable Two Way Radio United Radio Communucations

Motorola Solutions

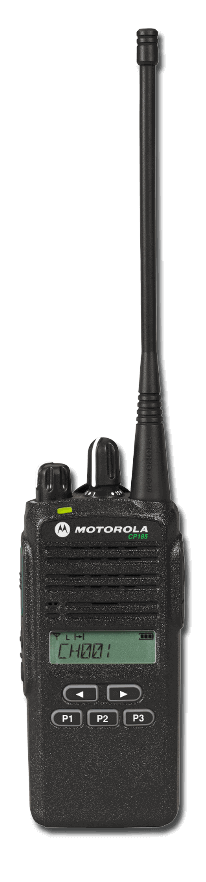

CP185

Ideal for educational institutions, retail and hospitality businesses, service and manufacturing industries, and many other demanding, professional applications, the Motorola CP™185 brings you a robust two-way radio solution. The CP185 has an extensive feature set including built-in voice scrambling for increased privacy, VOX capability for hands-free communication, five programmable buttons and X-Pand™ Technology to provide crisp, clear and strong audio quality even in noisy environments. Combined with the compact, lightweight design of the CP185, you get just what it takes to enhance communication while increasing productivity.

The CP185 is available in a Limited Keypad (LKP) model with a screen. The CP185 MDC comes in an LKP model and a No Keypad (NKP) model, providing the right features for each user.

Performance Characteristics

Frequency Band:
VHF, UHF

Frequency Range:
VHF: 136-174 MHz; UHF: 435-480 MHz

Power Output:
4W (UHF) / 5W (VHF)

Number of Channels/Groups/Zones:
16 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Li-ion battery: Up to 11 hours
NiMH battery: Up to 10 hours
High-Capacity Li-ion battery: Up to 16 hours

Channel spacing:
12.5, 25

Physical Characteristics

Dimensions H x W x D (with standard battery)
4.72 x 2.28 x 1.46 in

Weight (with standard battery)
12.34 ounces

Keypad / Keys
Limited

Display
Full

User Environment

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IP54

Request A Quote

Compact, lightweight design
Makes it easy to handle and use

Built-in simple voice scrambling
Increase the privacy of your conversations

VOX capable
Enables hands-free communication so you can focus on the job at hand

Programmable buttons
5 programmable buttons enable easy, one-touch access to up to 10 user-selected features.

Multi-channel capability
16 channels to support communication among all of your employees

X-Pand™ technology
Provides crisp, clear and strong audio quality even in noisy environments

Adjustable power levels
Adjustable high and low power levels (5 watt: VHF; 4 watt: UHF) help extend battery life

Repeater capability
For use when increased coverage is required

Talkaround capability
Enables communication even when a repeater is not being used

Tighter specifications
-70 dB adjacent channel selectivity provides enhanced rejection of interference from strong signals on adjacent channels so you can get your message through clearly

Military standards
Meets Military 810 C, D, E and F standards to stand up to the most demanding conditions

MDC1200 Capabilities
Provides caller ID, radio in-range check and radio inhibit decode in CP185 MDC No Keypad and Limited Keypad Models

DTMF Capabilities — CP185 MDC No Keypad Model
Provides receive voice selective call, call alert, transmit PTT ID Quik-Call II: Receive voice selective call, call alert

DTMF Capabilities — CP185 MDC Limited Keypad Model
Provides transmit/receive voice selective call, call alert, transmit PTT ID; Quik-Call II: Receive voice selective call, call alert

Please contact us for more information

Antenna [+]

	8504762J02 Antenna VHF 14CM Sheath Encl
	HAD9338 Antenna VHF Heliflex 136-162 MHz
	HAD9742 Antenna VHF Stubby 146-162 MHz
	HAD9743 Antenna 162-174 MHZ Stubby
	NAD6502 Antenna VHF 146-174 MHz Whip
	NAD6579 Antenna 148-161MHz Whip
	PMAD4012 Antenna VHF 9CM (136-155MHZ)
	PMAD4013 Antenna VHF 9CM (155-174MHZ)
	PMAD4014 VHF Helical Antenna, 136-155 MHz (14cm)
	PMAE4003 Antenna UHF 9CM (430-470MHZ)
	PMAE4006 Antenna UHF 9CM (470-510MHZ)

Batteries [+]

PMNN4080

Li-ion High-Capacity 2150 mAh 7.4V Battery

PMNN4476

Li-ion 1500 mAh 7.4V Battery

PMNN4082

NiMH 1300 mAh 7.4V Battery

Carry Accessories [+]

	HLN9701 Nylon Carry Case Short w/Belt Loop DTMF
	HLN9844 2" Spring Belt Clip
	PMLN5334 Soft Leather Protective Case
	HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch Motorola Original Universal Chest Pack protects the radio and provides the freedom from holding it during standby communication mode. Universal Chest Pack fits virtually any radio.
	HLN9985 Waterproof Bag with Large Strap
	RLN4815 RadioPAk Radio/Utility Case The RadioPAk is lightweight and comfortable. Worn around the waist, it keeps radios/phones at hand. It features a separate 6 x 8 inch zippered pouch for other on-the-job necessities. Adjustable woven nylon belt fits both men and women.

Chargers [+]

	EPNN9288 90-134V, Switch Mode Power Supply with NA/LA Country Plug
	PMLN6371 Multi Unit Charger
	PMLN5398 Tri-Chemistry Single Unit Charger Base with Switch Mode Power Supply Tri-Chemistry Single Unit Charger Base with Switch Mode Power Supply, (includes PMLN5228 and EPNN9288)
	NNTN8461 Charger Insert (CP185)

Earpieces [+]

	PMLN4444 Earset Boom Microphone with PTT/VOX
	HMN9754 Surveillance Microphone (Two-Wire)
	PMLN4442 Earbud with In-Line Microphone
	PMLN4443 Ear Receiver with In-Line Microphone
	RLN4895 Earpiece w/Mic&PTT/Comb (Blk)
	WADN4190 Receive-Only Flexible Earpiece with 3.5mm plug This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.
	PMLN4620 Receive-Only D-Shell Earpiece This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.
	RLN5317 Comfort Earpiece w/Mic and PTT Beige
	RLN5318 Comfort Earpiece w/Mic and PTT Black
	RLN6230 Extreme Noise Kit. Includes 2 foam earplugs. For high-noise environments. Noise reduction = 24dB. Can be used with Clear Comfortable Earpieces, Black Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.
	RLN6231 Extreme Noise Kit. Includes 2 foam earplugs. For high-noise environments. Noise reduction = 24dB. Can be used with Clear Comfortable Earpieces, Beige Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.
	RLN6232 Low Noise Kit - Clear Acoustic Tube Assembly. Includes 1 clear rubber eartip. For low-noise environments, does not provide hearing protection, Black Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.
	RLN6241 Low Noise Kit - Clear Acoustic Tube Assembly. Includes 1 clear rubber eartip. For low-noise environments, does not provide hearing protection, Beige Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended.
	RLN6242A Quick Disconnect Acoustic Tube Replacement
	RLN4941 Receive-Only Earpiece with Translucent Tube and Rubber Eartip An earphone jack located on the microphone allows the user to receive audio when using this earpiece. The translucent tube provides a more discreet option for those that need to receive messages privately

Headsets [+]

PMLN4445

Ultra Lightweight Headset w/PTT

PMLN5003

Lightweight Temple Transducer Headset

Remote Speaker Mics [+]

	PMMN4008 Remote Speaker Microphone
	PMMN4013 Remote Speaker Mic w/Coil Cord and Swivel Clip Remote Speaker Microphone with Coil Cord and Swivel Clip Allows you to talk and listen without removing the radio from the belt, case or charger. Ideal for high noise level environments. This water resistant microphone includes: 6.0' Coiled Cord Assembly, and Swivel Clip.
	PMMN4029A Remote Speaker Microphone with IP57 Rating
	AARLN4885 Receive-Only Covered Earbud with coiled cord This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.
