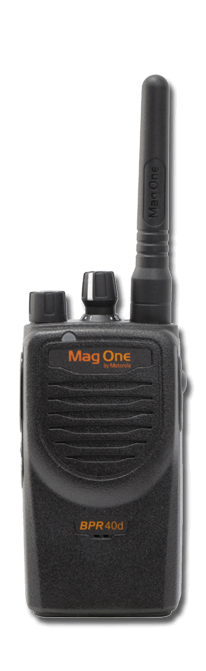

Motorola BPR40D Portable Two Way Radio United Radio Communucations

Motorola Solutions

BPR40D

Lightweight, powerful and affordable, with DMR II support.

The BPR40d radio supports analog communications for simple, familiar push-to-talk voice. It also supports the Digital Mobile Radio (DMR II) communications standard, giving you more range and clear voice connections, even at the edge of your coverage. Long battery life means continued communication that lasts an entire shift. Rugged and IP54 water-resistant for worry-free operation, while the radio's two-year warranty brings peace of mind.

Performance Characteristics

Frequency Range:
UHF: 403 - 470 MHz

Power Output:
1W/4W

Number of Channels/Zones:
16 Channels

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
Digital: up to 15 hours
Analog: up to 12 hours

Channel spacing:
12.5/25 kHz

Physical Characteristics

Dimensions H x W x D (with standard battery)
4.2 x 2.3 x 1.5 in.

Weight (with standard battery)
10.9 oz

Keypad / Keys
No Keypad

Display
No Display

User Environment

Operating temperature
-30° to +60° C (Radio Only)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IP54

Request A Quote

Key features

Supports analog and digital communications
UHF, VHF
16 channels
1 - 4.0 Watts (UHF) / 1 - 5.0 Watts (VHF) Output Power
MIL-STD 810 & IP54-Rated Durability
Analog/Digital Operation
Up to 15 hours of battery life
Mixed-Mode Channel Scan
Voice confirmation of button and knob actions

Rugged, Die-Cast Chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR 40d is also protected against dust (IP54).

Digital Mobile Radio (DMR II) Support
Take advantage of advanced digital features, clear voice communications and greater coverage. Interoperate with other DMR radios.

Popular with these industries:

Construction
Education
Hospitality
Property Management
Retail

Spec Sheets

Motorola BPR40 Data Sheet

Antenna [+]

PMAE4020AR

Mag One UHF 450-470 MHz Stubby Antenna

PMAE4104

Antenna

Batteries [+]

PMNN4075

Li-ion High Capacity 1500 mAh Battery

7.2V, 1500 mAh, Li-ion, 12month warranty

Motorola Mag One high capacity battery for the BPR40d. 25% more capacity than the standard battery and it uses li-ion chemistry to give you 20% more talk time with less weight. Belt clip not included.
