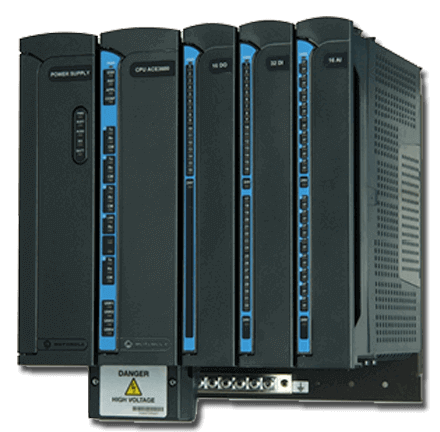

Motorola ACE 3600

High-Performance, Real-Time Processing Power
The ACE3600's processing power provides accurate data analysis and communication for the most critical, and demanding SCADA applications to ensure optimal operation with a 32-bit processor, running at 200 MHz.

Operations-Critical Redundancy
The ACE3600 can also be redundantly configured with a simple Ethernet interconnection. This ensures continuous operation if one CPU or power supply were to fail.

Large Scale Capacity
24 different types of I/O modules are available, and each RTU can to support up to 110 I/O modules, giving you the flexibility to configure large or small sites compactly and cost-effectively.

Connection Versatility Across Operational Technologies
Connect to operational technologies seamlessly and transmit information efficiently with the ACE3600's extensive common data protocol support combined with our enhanced MDLC protocol.

Interoperable Communication Capabilities
The ACE3600's unique communication capabilities allow your system to transmit your valuable data over a variety of media including analog/digital two-way radio, dial-up modem, point-to-point microwave, 3G/4G public or private, and Ethernet - simultaneously.

Enhanced Security Feature Set
Apply the same state-of-the-art security features that Motorola provides for military and critical enterprise networks to your SCADA systems. The ACE3600 supports a full range of best-practice security options directly within the RTUs for a self-contained, autonomously secure system including:

• Security Enforcement Policy
• Built-In Firewall
• Access Control
• Role-Based Access Controls
• Intrusion Detection System
• Application Control Software
• Encryption
• Unused Port Deactivation
• Time-Window Commands

Datasheets

• Radio Datasheet
